Recently, Cronus mill manufacturer successfully sent a high-performance 5R4128 Raymond mill to a place in Jiangsu, helping customers to upgrade and optimize the deep processing capacity of non-metallic ores. The equipment has been strictly debugged and tested and meets national environmental protection, production safety and energy efficiency standards, marking that Cronus’ technical strength and service level in the field of fine powder processing equipment have been further improved.
Capacity range: 2~15 tons/hour
Applicable materials: non-metallic ores with Mohs hardness ≤7 and humidity ≤6%, including but not limited to: limestone, marble, barite, potassium feldspar, calcite, talc, bentonite, red iron oxide, coal slag, etc.
Maximum feed particle size: 20mm
Finished product fineness: 80~325 mesh (pass rate ≥95%)
5R4128 Raymond mill composition structure

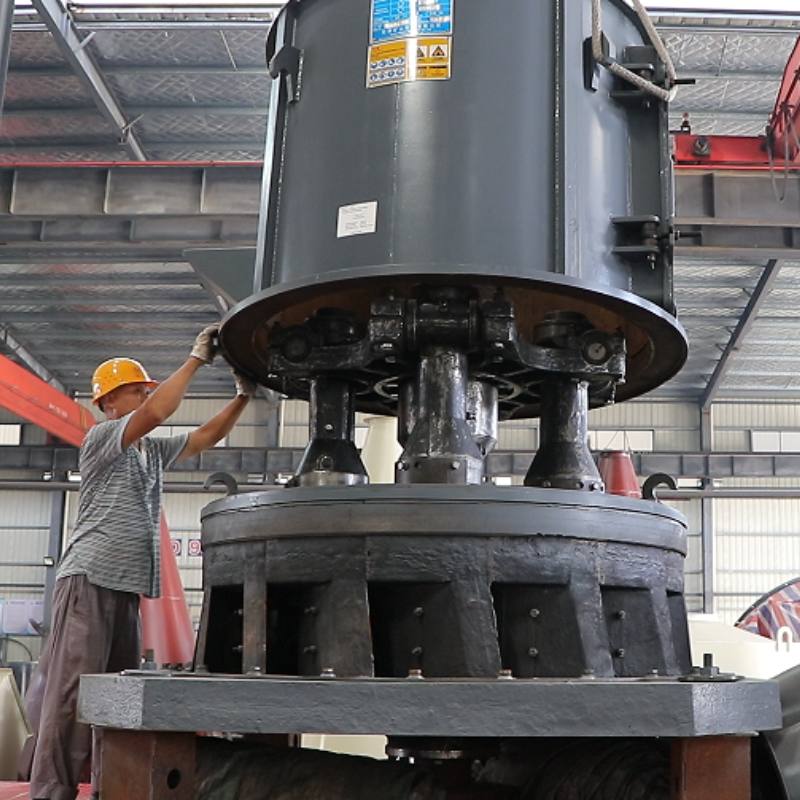

Grinding roller: has multiple functions such as grinding, fineness adjustment, and efficiency enhancement. High-hardness wear-resistant materials are used, which can run smoothly and evenly to avoid over-grinding and under-grinding.
Grinding ring: cooperates with the grinding roller at high speed to complete material grinding. Provides stable support, guides the stable movement of the grinding roller, and ensures efficient crushing of materials.
Shovel: scoops up the raw materials and transports them between the grinding roller and the grinding ring. Wear-resistant design, suitable for long-term high-intensity operation.
Analyzer: Controls the fineness of the powder, adjusts the particle size of the finished product by speed regulation, and improves the consistency of the finished product.
Fan: Provides airflow power to transport the powder to the analysis and collection system.

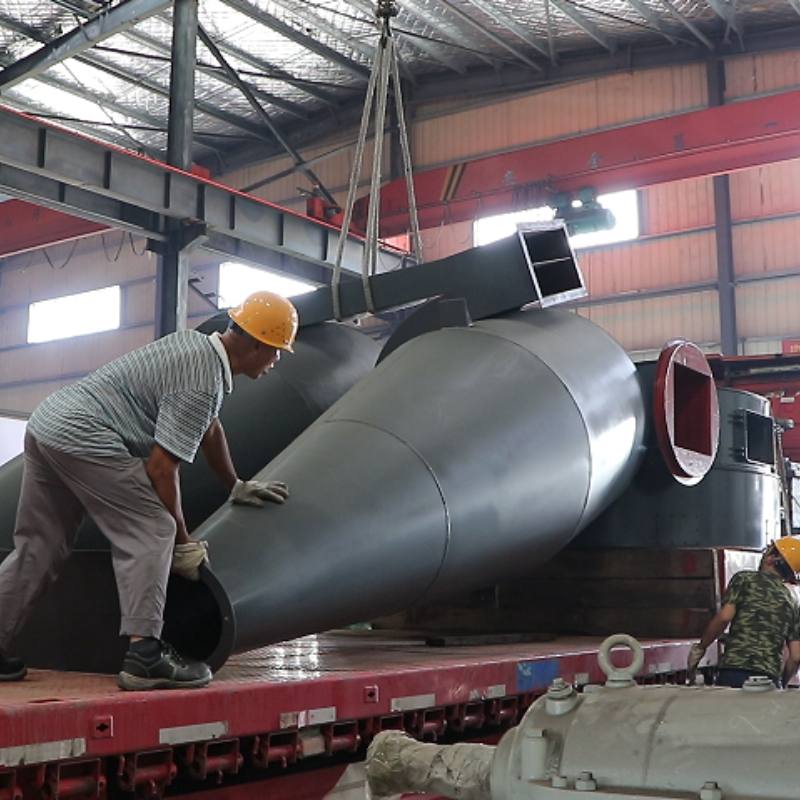

Cyclone collector: Collects fine powder of the finished product, improves the efficiency of powder collection, and reduces dust leakage.
Pipeline system: Connects the whole machine components to ensure sealing and smooth airflow to prevent blockage and leakage.
5R4128 Raymond mill working principle
Coarse crushing first: large pieces of ore are first processed by the crusher to ≤30mm so that they can enter the mill.
Quantitative delivery: The electromagnetic vibrating feeder feeds the raw materials into the grinding chamber evenly and continuously to ensure stability.
Grinding and crushing: The grinding roller is pressed on the grinding ring by centrifugal force to form a rolling belt, and the material is crushed into powder in the high-pressure area.
Grading and sorting: The powder enters the analyzer with the air flow, the coarse particles are returned for grinding, and the fine powder is selected.
Efficient collection: After the qualified fine powder is collected by the cyclone collector, it can be packaged or enter the subsequent process.
Product advantages of R4128 Raymond mill
Vibration reduction and noise reduction: The main machine is equipped with multiple vibration reduction systems to significantly reduce vibration and noise, and improve operational stability and service life.
Structural innovation: Optimize the design structure, improve grinding efficiency, reduce energy consumption, and comply with the trend of energy conservation and environmental protection.
High-efficiency reducer: Heavy-duty design, wear-resistant and impact-resistant, compatible with electric and pneumatic control, easy maintenance.
Intelligent control: One-button start and stop function, adjustable parameters, convenient operation, reduced manual intervention, and automated production.
Fan adjustment system: Integrated air volume control system to ensure smooth powder delivery and stable finished product fineness.
Conclusion
The 5R4128 Raymond mill sent to Jiangsu this time reflects Cronus’s deep technical accumulation in the field of powder equipment. With its high wear resistance, high precision and intelligent advantages, the equipment will play a key role in the customer’s non-metallic mineral deep processing production line, helping it achieve the goals of energy saving, efficiency improvement, cost reduction and quality improvement. Cronus will also continue to help more customers move towards high-quality development with technological innovation and service capabilities.
If you are interested in 5R4128 Raymond Mill or other powder processing equipment, please feel free to contact Cronus customer service team. We will provide you with detailed technical parameters, selection suggestions and customized solutions to help you efficiently put into production, reduce costs and increase efficiency!
