A complete ultrafine grinding mill production line can be configured into two major parts: the core mainframe system and the supporting auxiliary system.
Core mainframe system: This is the heart of the grinding operation. Any model of ultrafine grinding mill must include three major parts: the mainframe, the analyzer, and the blower.
Supporting auxiliary systems: To ensure the continuous, efficient and environmentally friendly operation of the production line, the assistance of equipment such as crushers, elevators, feeders, discharge screw conveyors, discharge valves, pulse dust collectors and air compressors is usually required.
The specific configuration specifications and power of different models of ultrafine grinding mills vary. The details are shown in the following table:

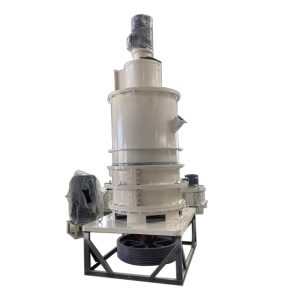

Main Structure of the Ultrafine Grinding Mill
| Component | Description |
|---|---|
| Grinding rings and grinding rollers | Under the action of centrifugal force, the grinding roller presses against the grinding ring and rolls at high speed, crushing the material into powder. The grinding roller and grinding ring made of special wear-resistant steel can extend the service life of the equipment. |
| Classification system | It can be built-in or external. The fineness of the finished product can be controlled by adjusting the rotational speed to meet the needs of different fields. |
| Transmission device | The motor drives the main shaft through the reducer, which in turn rotates the grinding roller and the classification impeller. The high-quality transmission device is highly efficient, low-noise and easy to maintain. |
| Auxiliary system | It includes a feeder, a cyclone collector, a dust collector and a fan, etc. The feeder feeds materials evenly, the cyclone collector collects finished products, the dust collector ensures environmental protection, and the fan provides air flow power. |
