European Stone Hammer Crusher (0-5mm) – New Condition Steel Machine for Sand Production Line

Applications of European Stone Hammer Crusher :

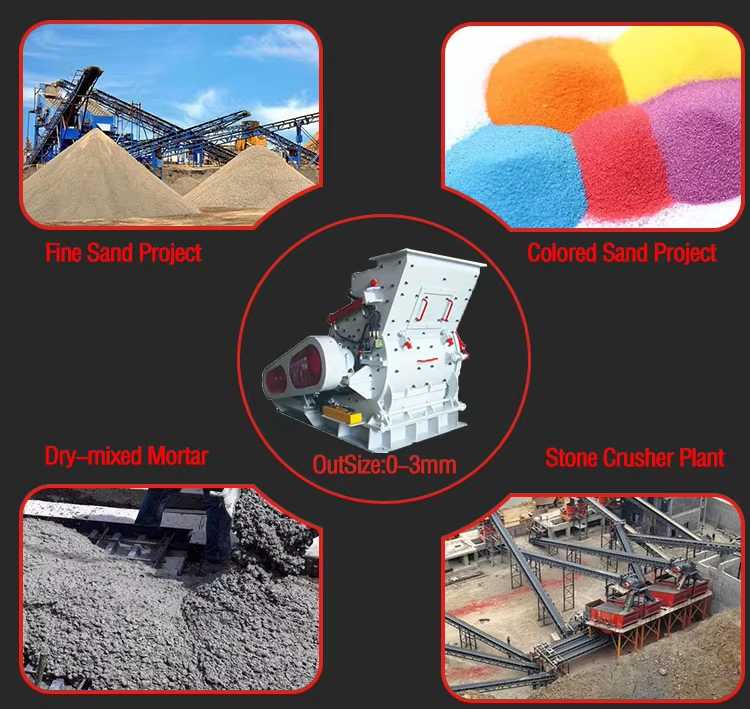

The European version of the coarse grinding hammer crusher is widely used in industries such as metallurgy, mining, chemical, cement, coal, construction, sand production, refractories, and ceramics. It’s designed for breaking and crushing materials with a compressive strength not exceeding 320 MPa, suitable for various soft and hard ores.

Structure & Working Principle of European Stone Hammer Crusher:

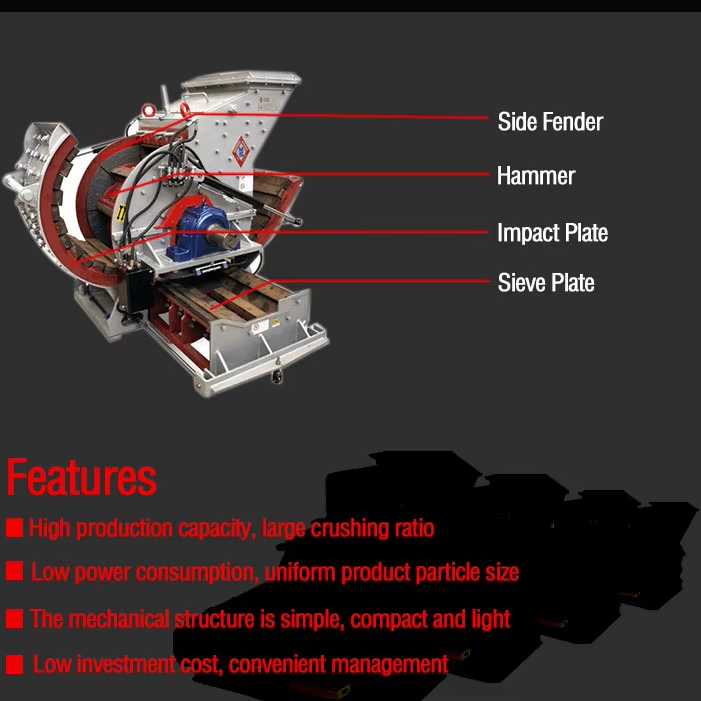

The European version hammer crusher consists of several core components, including:

Casing
Rotor
Bearings
Hammers
Grate bars

The machine operates by using a motor-driven V-belt to rotate the rotor. The centrifugal force generated by the rotating hammer crushes bulk materials entering the crushing chamber. The high-speed hammer effectively breaks materials into smaller sizes.

The casing is welded with steel plates for durability, and the rotor is equipped with high manganese steel liners that are easy to replace. The hammer is mounted on a rotating spindle, and the crushed material passes through the crushing chamber.

Coarse Grinding Parameters of European Stone Hammer Crusher:

Maximum compression strength: ≤320 MPa

Output fineness: 0-5mm

Mesh	Micron (µm)	Mesh	Micron (µm)
20	850	325	45
25	710	350	73
30	600	400	38
35	500	450	32
40	425	500	28
45	355	550	26
50	300	600	23
60	250	700	20
70	212	800	18
80	180	1000	13
100	150	1340	10
120	125	1670	8.5
140	106	2000	6.5
170	90	2500	5
200	75	5000	2.6
230	63	6250	2
250	58	8000	1.6
270	53	10000	1.3
300	50	12500	1

Company Information:

We are a factory-direct supplier of high-quality machinery, including the European Stone Hammer Crusher. Our parent company, Guilin Mining Machinery Co., Ltd (GUI KUANG), founded in 1973, has over 50 years of experience manufacturing premium equipment.

Product Range:

Category	Equipment Name
Roller Mills	Vertical Roller Mills
	Superfine Vertical Roller Mills
	Raymond Mills (Raymond Roll Mills)
	Ultra-fine Ring Roller Mills
Crushers & Grinders	Crushers
	Innovative Sand Making Machines
Integrated Systems	Integrated Sand & Powder Grinding Machines
Production Lines	Hydrated Lime Production Lines

Are you a manufacturer or a trading company?

We are a factory, offering factory-direct prices. We are the international service center for Guilin Mining Machinery Co., Ltd (GUI KUANG).

What products can you supply?

We supply a variety of grinding and crushing machinery, including the European Stone Hammer Crusher.

What information should customers provide for a quote?

Material to be processed (e.g., quartz, talc)
Feeding size (mm/mesh)
Desired final fineness (mm/mesh)
Expected handling capacity (tons per hour or day)
Industry for final product usage
Desired powder pass rate (D50, D90, D97)

What is the warranty and spare parts policy?

We offer at least 12 months of warranty. Spare parts are supplied at the lowest cost.
