Which is Better: Raymond Mill or Ball Mill? — A Comprehensive Comparison and Application Analysis

Raymond mills and ball mills are both common and important equipment in the mining machinery and powder processing industries. Although both are powder grinding equipment, they differ significantly in structure, principle, cost, and scope of application. Choosing the best equipment depends on the specific material properties and production requirements. Below, we will conduct a comparative analysis from several aspects.

Raymond mill: Vertical structure, small footprint, strong system integration, capable of forming an independent production system.

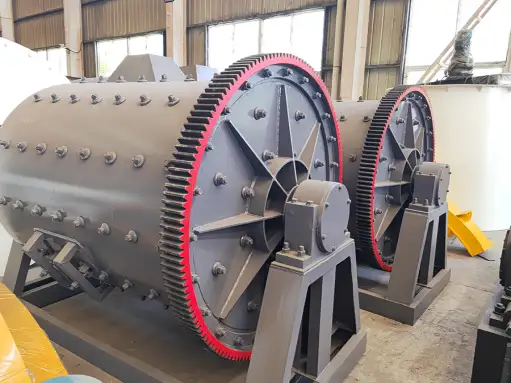

Ball mill: Horizontal structure, generally requires a larger installation space, and the overall system is relatively decentralized.

Cost Comparison

Raymond mill: The initial purchase cost is relatively high, but the equipment has low wear rate and low ongoing maintenance costs, resulting in a high overall cost-effectiveness.

Ball mill: The equipment price is lower, but due to the rapid wear of the grinding media and the drum liner, the ongoing maintenance and replacement costs are higher.

Working Principle Comparison

Raymond Mill: Centrifugal force presses the grinding rollers against the grinding rings. The scrapers push the material between the rollers and the grinding rings for grinding. Driven by the fan’s airflow, the powder is screened by a classifier. Qualified materials enter the finished product bin, while unqualified materials are returned for further grinding.

Ball Mill: The low-speed rotation of the drum drives grinding media such as steel balls, impacting, squeezing, and grinding the material, achieving crushing and grinding from coarse particles to fine powder.

Ball Mill: Suitable for further pulverization of materials. Widely used in industries such as cement, silicate products, new building materials, refractories, fertilizers, ferrous and non-ferrous metal beneficiation, and glass and ceramics. Both dry and wet grinding are possible.

Raymond Mill: Ideal for finely grinding non-metallic ores and chemical raw materials. Suitable for materials with a Mohs hardness of 9.3 or less and a humidity of less than 6%, such as barite, calcite, gypsum, glass, and insulation materials. The finished particle size can be adjusted between 80 and 325 mesh, and some materials can even reach 2000 mesh.

Choosing Quartz Stone Grinding Mill

For quartz stone grinding, if a high iron content is required in the finished powder, a ball mill should be preferred. If the iron content requirement is less stringent, a Raymond mill, with its higher cost-effectiveness, can be an option.

Both Raymond mills and ball mills have their own advantages, and it’s difficult to simply say which is better.

If adjustable fineness, stable operation, and low overall cost are desired, a Raymond mill is recommended.

If large-scale production, strong adaptability, and special material properties are required, a ball mill is more suitable.

When selecting a grinding machine, companies should consider their production processes, material characteristics, and budget to select the most suitable grinding equipment to maximize efficiency while ensuring quality.
